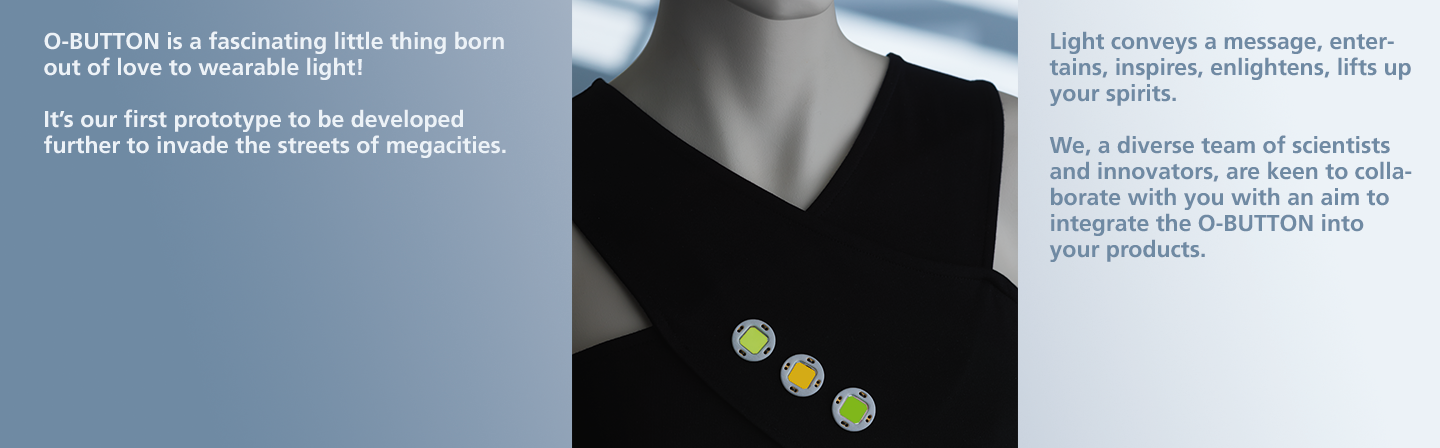

O-BUTTON

Illuminating#

O-BUTTON is based on OLED technology – organic light emitting diodes. OLED is an area-light source and comes in a variety of possible emission colours. What colour is you mood today? You can find possible colours, shapes and patterns on the "customizing" subitem.

Customizable#

It is possible to create OLEDs of various sizes and designs. Make the O-BUTTON to your personal brand. Emission colours available. Standard colours: red, green, white. The emission area can be patterned with every design you can imagine...

Modular#

Create your own systems for sensing and interacting with the world around you with the modular O-BUTTON system.
First of all, the O-BUTTON is an Output device – it emits light: as a stand-alone device or as a matrix via i²c-driving.
It can be combined with a touch sensor, integrated on an energy harvesting module or equipped with an organic solar cell instead of the OLED.

Spec(Tacular)#

Electrical specifications O-BUTTON Basic:

  • Low power (DC 3V; 5 mA @ 1000 cd/m²
  • PWM controllable: arduino,
  • 2 pin connectivity (Iin; GND)

Electrical specifications O-BUTTON Matrix:

  • Low power (DC 3V; 5 mA @ 1000 cd/m²)
  • compatible with Adafruit's Neopixel (W2812 integrated)
  • 4 pin connectivity (Iin; GND; Din; Dout)

Mechanical specifications O-BUTTON:

  • Dimensions: Diameter 24 mm; Emission area 12x12 mm²
  • electrical contacting: conductive yarn
  • water resistant (coming soon)
