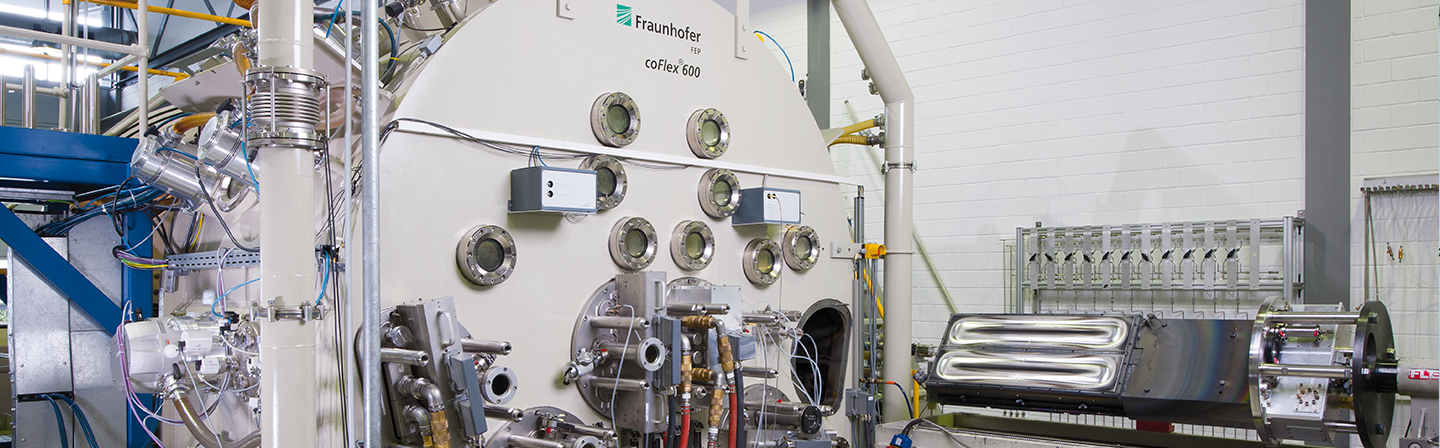

Vacuum web coating plant for coating flexible materials with optical, electrical and decorative functional layers and barrier layers
Pilot-plant for the roll-to-roll coating of flexible materials (plastic films, textile materials, metal foils) using the following technologies:
- pulsed sputtering
- DC sputtering
- plasma pre-treatment
Typical substrate
- web widths up to: 700 mm
- substrate thickness: 7 ... 200 µm
- maximum outer roll diameter: 400 mm
Range of applications
- development of technologies for coating of plastic films and other flexible materials
- development of layer systems (optical, electrical and decorative functional layers and barrier layers)
- development of plasma pre-treatment processes
- development and testing of key components
- contract coating work:
- sample provision for testing and marketing purposes
- pilot production
- studies on the efficiency of coating processes
