Ultra-low-power OLED microdisplays

Ultra-low-power OLED microdisplays
  • for display of simple graphic information
  • ultra-low power consumption of approx. 1 mW
  • SPI-Interface
  • monochrome green with high luminance >1000 cd / m²

UUGL1120 UUGL1220 UUGL1320
  • 0.19" diagonal
  • 304 × 256 pixels
  • 12 μm pixel pitch
  • 4 Bit grayscale
  • 0.16" diagonal
  • 304 × 128 pixels
  • 12 μm pixel pitch
  • 4 Bit grayscale
  • 0.15" diagonal
  • 720 × 256 pixels
  • 5 μm pixel pitch
  • 1 Bit grayscale
  • The listed microdisplays UUGL 1120, 1220 and 1320 are each available in 2 versions and include a simple optics and a graphical user interface for the control:

    lab evaluation kit:

    The display is driven by a microcontroller evaluation board via a breakout board

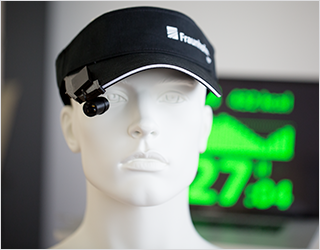

    HMD evaluation kit:

    The driving is realized by a miniaturized electronics with battery and Bluetooth connection in a compact assembly
